Goldex

• Dimensions:650X400X300mm
• Weight: 28 Kgs.
• Analysis range: PPM to 99.99%
• Accuracy: 0.01-0.1%
• Sample Type: Solid. Powder. Liquid.
• X-Ray Tube Votage: 5kv---50Kv (USA Source)
• High Voltage powder supply:0---50Kv
• X-Tube Flow: 0µA - 1000 µA.
• Camera: High-Definition camera
• Detector: Si-Pin
• Processor: 1024 channel signal processor
• Measurement time: 10-100 (can be set arbitrarily)
• Measurement elements: 18 main jewelry elements such as Au. Ag. Pt. Pd. Ru. Rh. Cu. Cd. Ir. Os. W. Re. Pb. Co. Fe. Zn. Ni.....and from Na - U 72 elements (except for. light elements) can be measured between them.
• Environmental temperature: 10 to 30 C
• Environmental humidity: 15% to 85%
• Input power supply: Ac 100-240 V / 50-60Hz.

Automatic peak position calibration, silver copper bimodal calibration is more accurate and intelligent

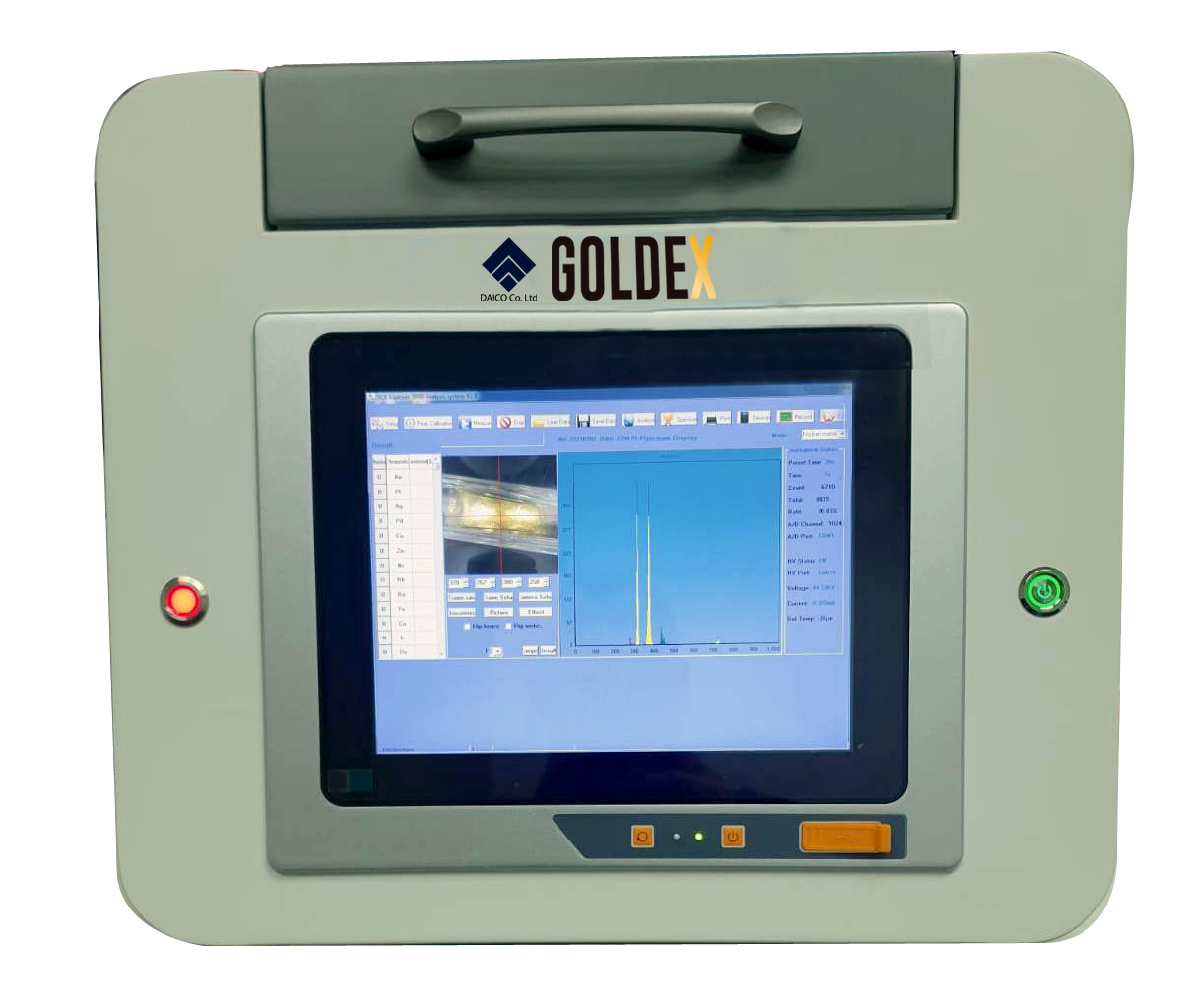

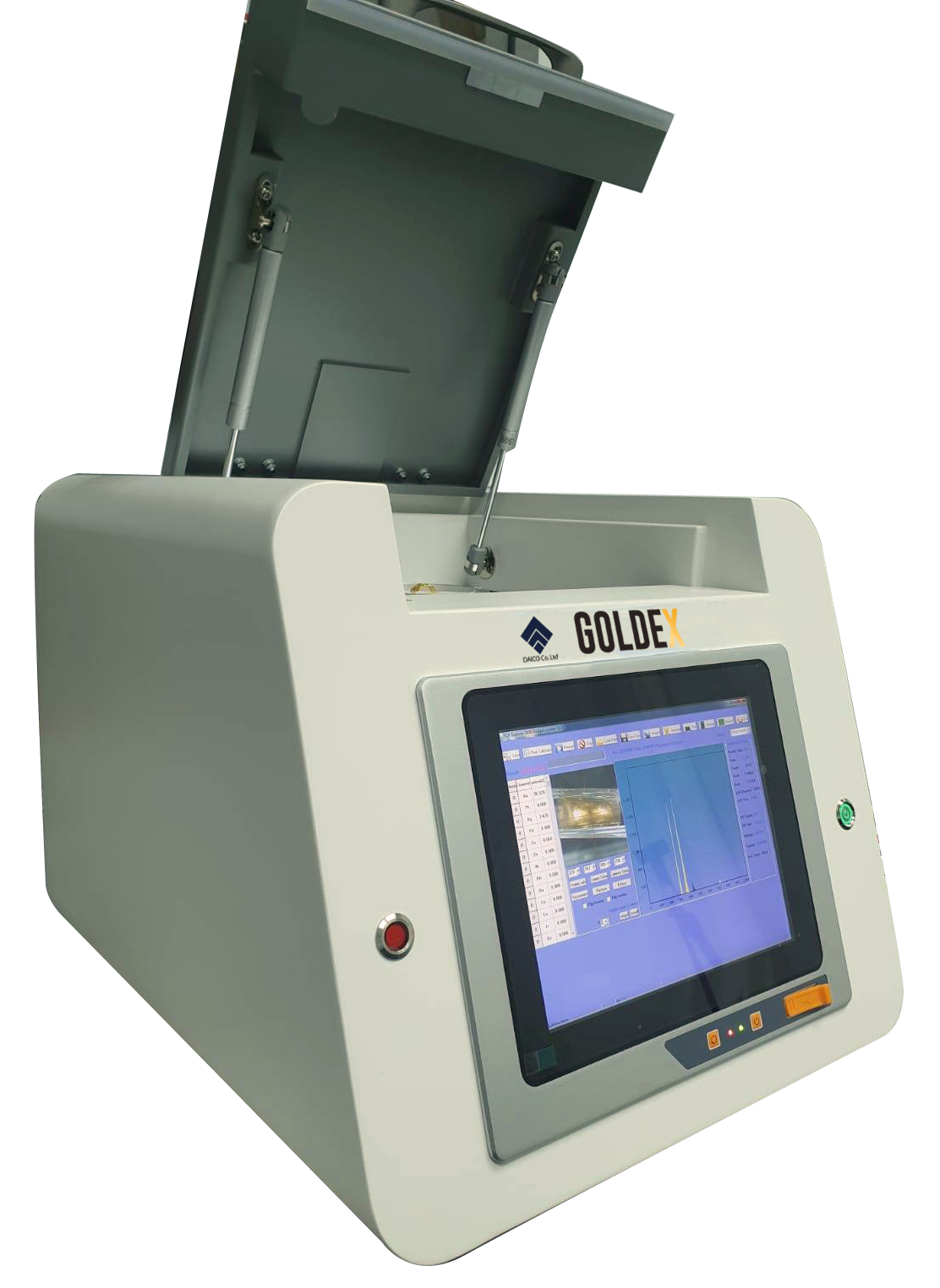

The Ogi Goldex precious metal analyzer can quickly and accurately analyze the content of precious metal components without damage, And the gold-plated auxiliary detection function, combined with patented positioning algorithms, achieves precise point measurement, allowing for accurate detection of samples regardless of size,
